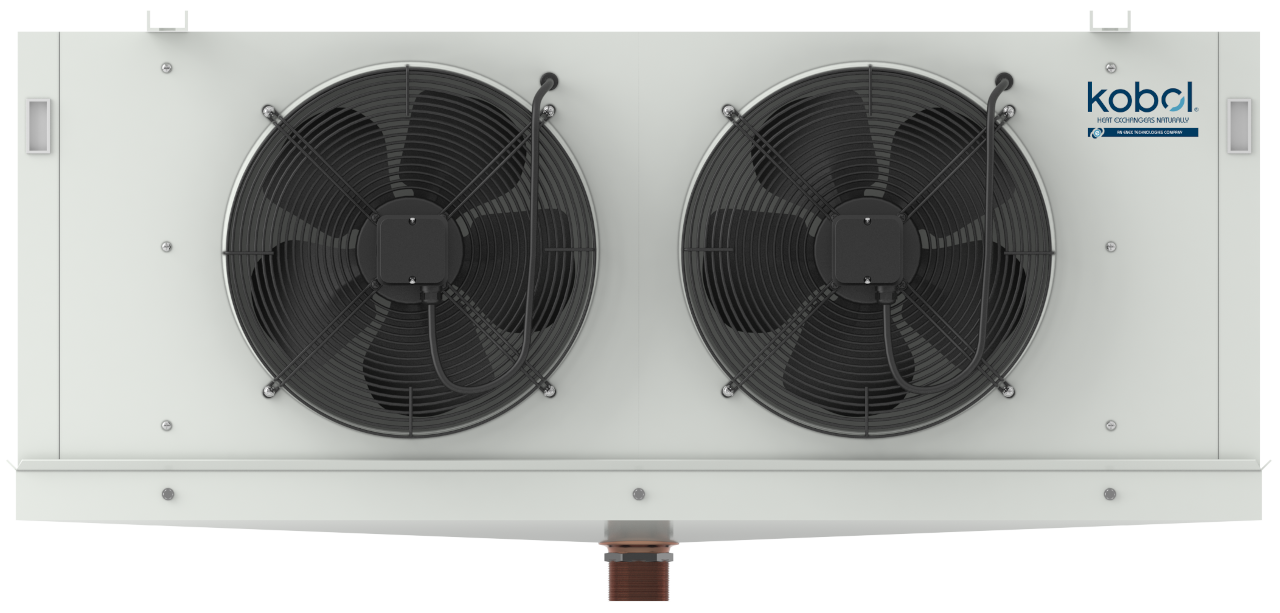

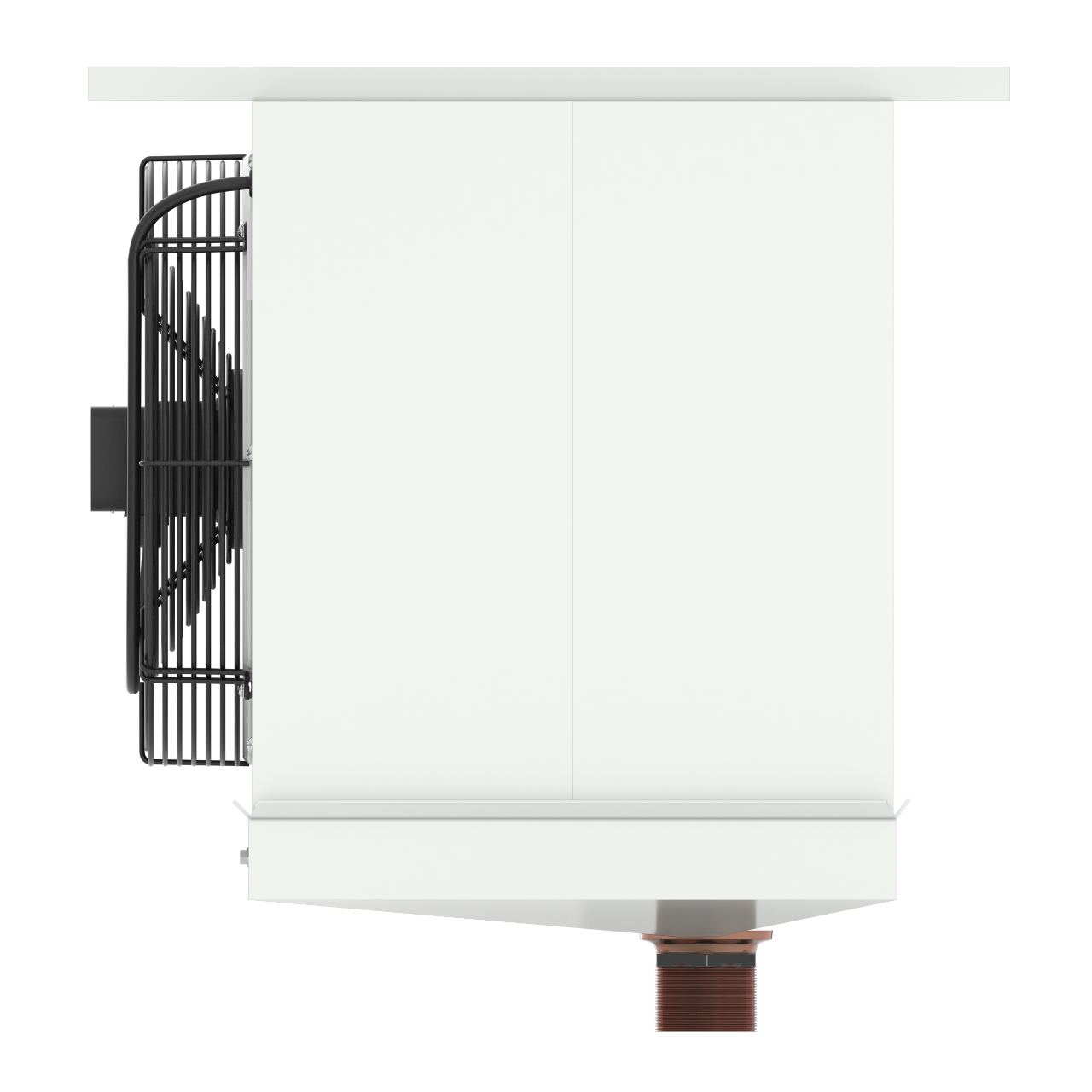

Cubic compact HFC-HFO

This unit was designed to meet every need: energy effi ciency, ergonomics, space. All ENEX TECHNOLOGIES products are designed and conceived with levels of excellence in food preservation,robustly built to ensure long life.

FEATURES

• Finned coil: Built with copper tubes (12mm Ø), manufactured in compliance with the CUPROCLIMA specifications.
• Fin spacings available: 4mm / 7mm
• Fan diameter available: Ø 250/315/350 mm
• Axial fans with external rotor (230V I @ 50/60Hz)
• Casing: the case structure of the unit is manufactured from plate of aluminium-magnesium alloy (97.5% Al-2.5% Mg) , giving it a high protection against corrosion, even in extreme environmental conditions; moreover this casing allows to meet more demanding food hygiene standards.
• Ready up to P=30 bar
• Resistance and leak tests up to 43 bar
• Burst tests up to 90 bar
• Equipment pressurised
