The Future of Refrigeration: R290 Indirect System
Sustainable solutions for Food Storage and Food Processing
Sustainability, Safety, & Reliability

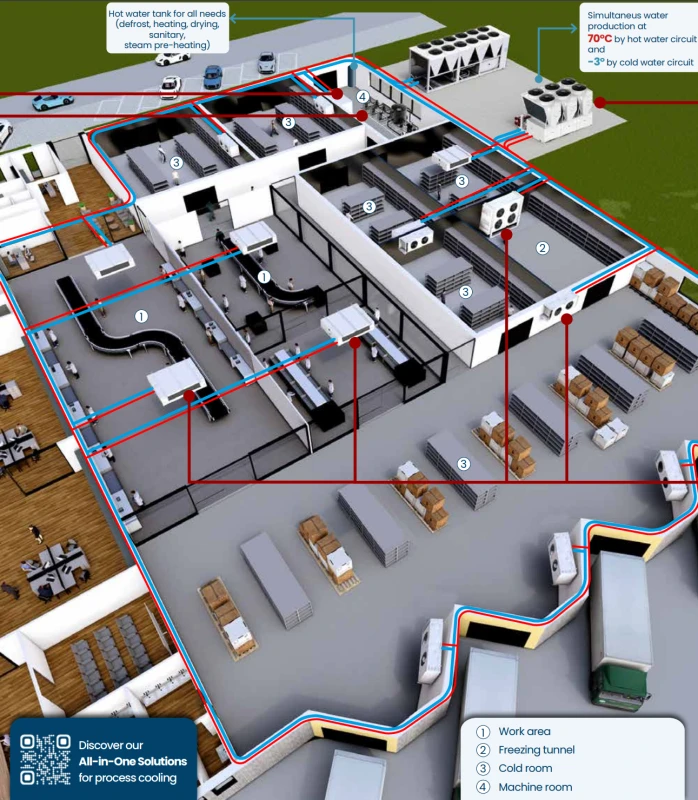

Indirect System Refrigeration
The concept of an indirect system is as follows: as the R290 refrigerant is flammable, it is not brought inside the building but remains confined to the outdoor unit, where it carries out the refrigeration cycle.
The transfer of cooling (and heating) to the loads takes place via intermediate transfer fluids: water or brine down to -15°C for medium-temperature loads, and CO₂ down to -45°C for low-temperature loads such as freezing tunnels and evaporators.
The main advantage is safety: by keeping the propane outside with a low charge per circuit, the risk of gas build-up in indoor spaces is eliminated and no dedicated plant room is required.
This combines two natural refrigerants with an extremely low GWP whilst maintaining efficiency, but without the risks associated with the flammability of propane brought directly into the building.
IDEAL APPLICATIONS:
- Ideal for food storage and food processing facilities up to 1 MW
- Suitable for new installations and replacement of existing HFC/HFO chillers
- With 4- pipe, a flexible solution when heating loads are much higher than cooling loads
Key Advantages of indirect cooling systems
Only natural refrigerants
R290 (GWP=0,02) & CO2 (GWP=1), F-gas compliant / no PFAS
Ease of installation and maintenance
Hydronic system & subcritical CO2.
Maximum safety
Modular design with small R290 charge per circuit.
Maximum reliability
Premium components & fully factory tested.
Fully independent
Fully independent heating & cooling (with 4-pipe unit).
Possibility of full outdoor installation
No plant room required, also in noise sensitive environments
R290 Chillers & Heat pumps 2 or 4 pipe
MODULAR PACKAGED
AIR-COOLED RECIPROCATING CHILLER
AND HEAT PUMPS
2 OR 4 PIPE
for outdoor installation
Everest RAE Kp, PAE Kp GPE Kp Series
Cooling capacity from 66 kW to 1120 kW
Heating capacity from 80 kW to 1150 kW

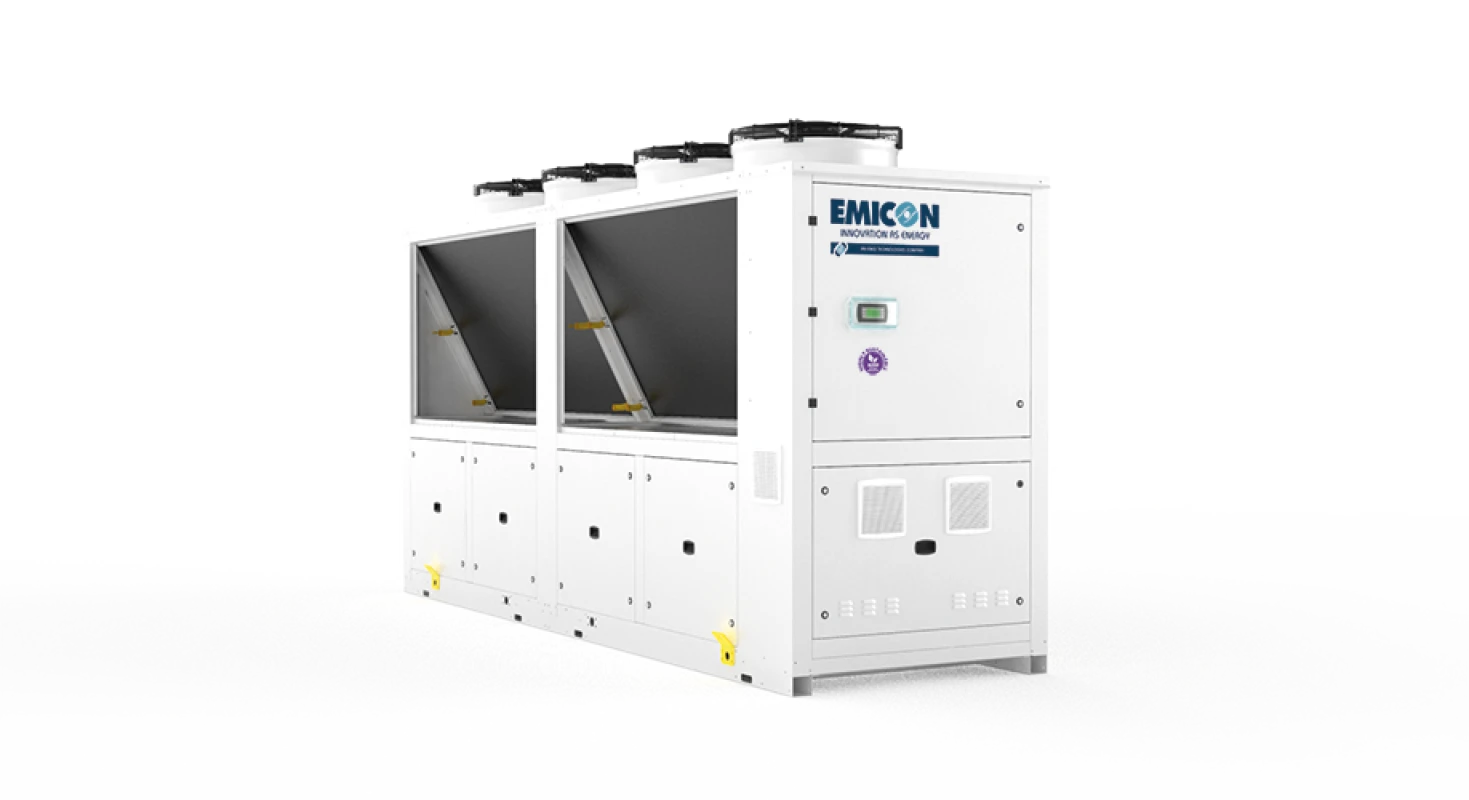

BRINE RECIPROCATING CHILLERS
HEAT PUMP 2 OR 4 PIPE
for outdoor installation
RAS MC VB Kp, PAS Kp, GPS Kp Series
Cooling capacity from 31 kW to 235 kW
Heating capacity from 40 kW to 330 kW
SCREW CHILLERS
HEAT PUMP 4 PIPE
for outdoor installation
RAH MC Kp, GPH Kp Series
Cooling capacity from 397 kW to 788 kW
Heating capacity from 390 kW to 676 kW

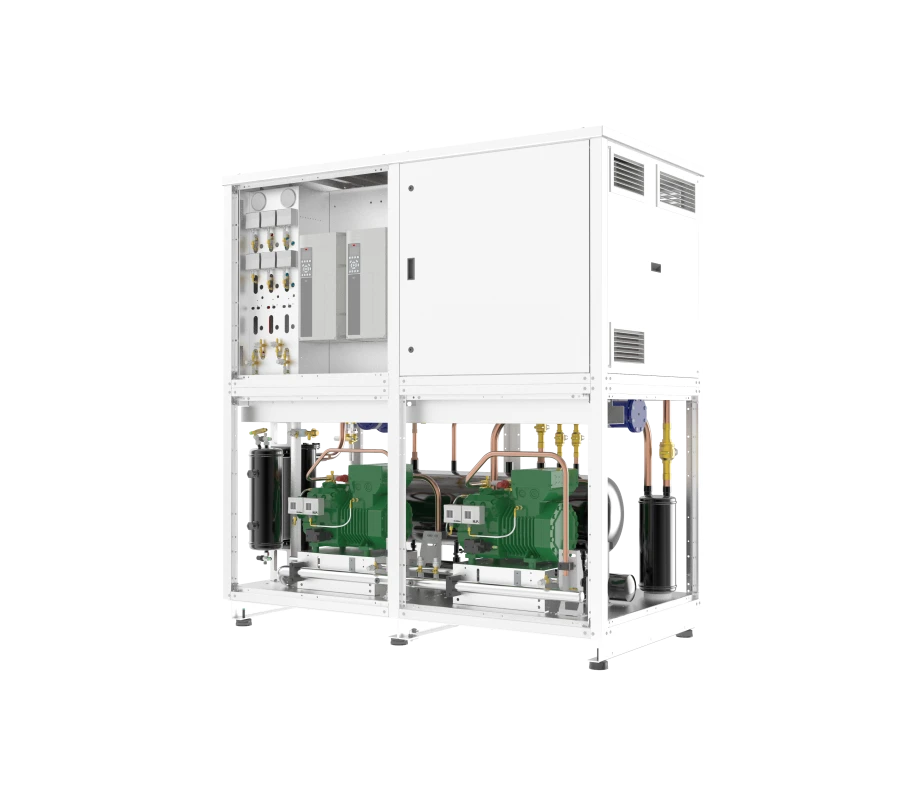

CO2 units
REFRIGERATION
SUBCRITICAL UNIT
for indoor installation
Kube Series
Cooling capacity from 8 kW to 270 kW
Custom units up to 1 MW
Air coolers
CO2 AIR COOLER
BLAST FREEZER
KEB/KEV Series
Cooling capacity from 14 kW to 92 kW

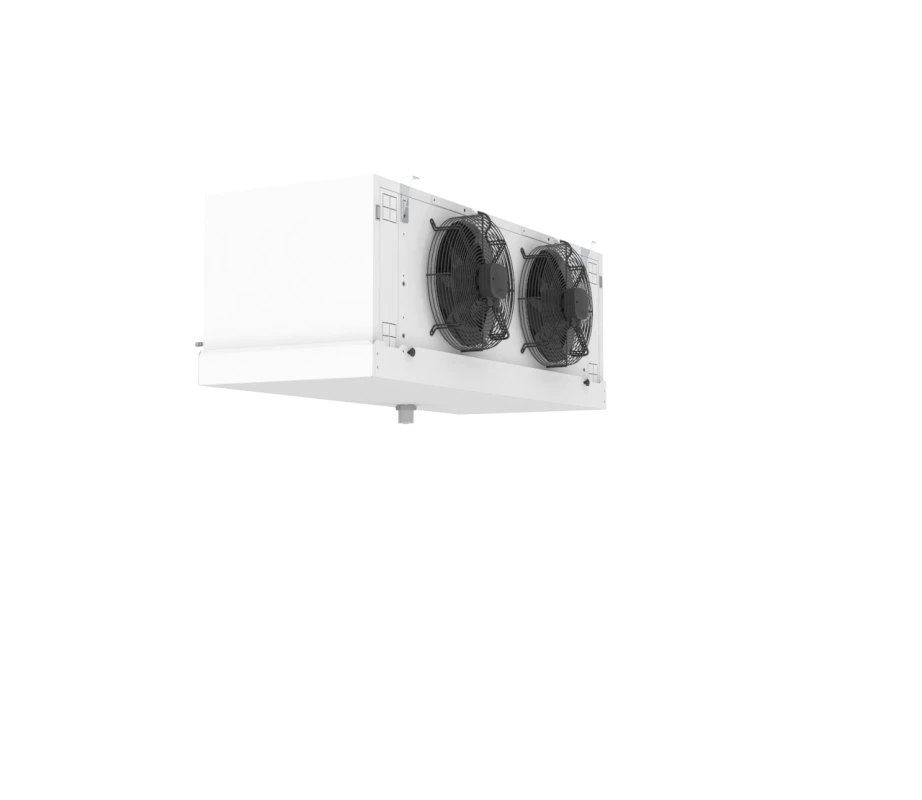

BRINE AIR COOLER
CUBIC
BC Series
Cooling capacity from 5 kW to 185 kW
BRINE AIR COOLER
DUAL FLOW
BD Series
Cooling capacity from 5 kW to 100 kW
HOT GLYCOL DEFROST CIRCUIT
embedded in the main coil

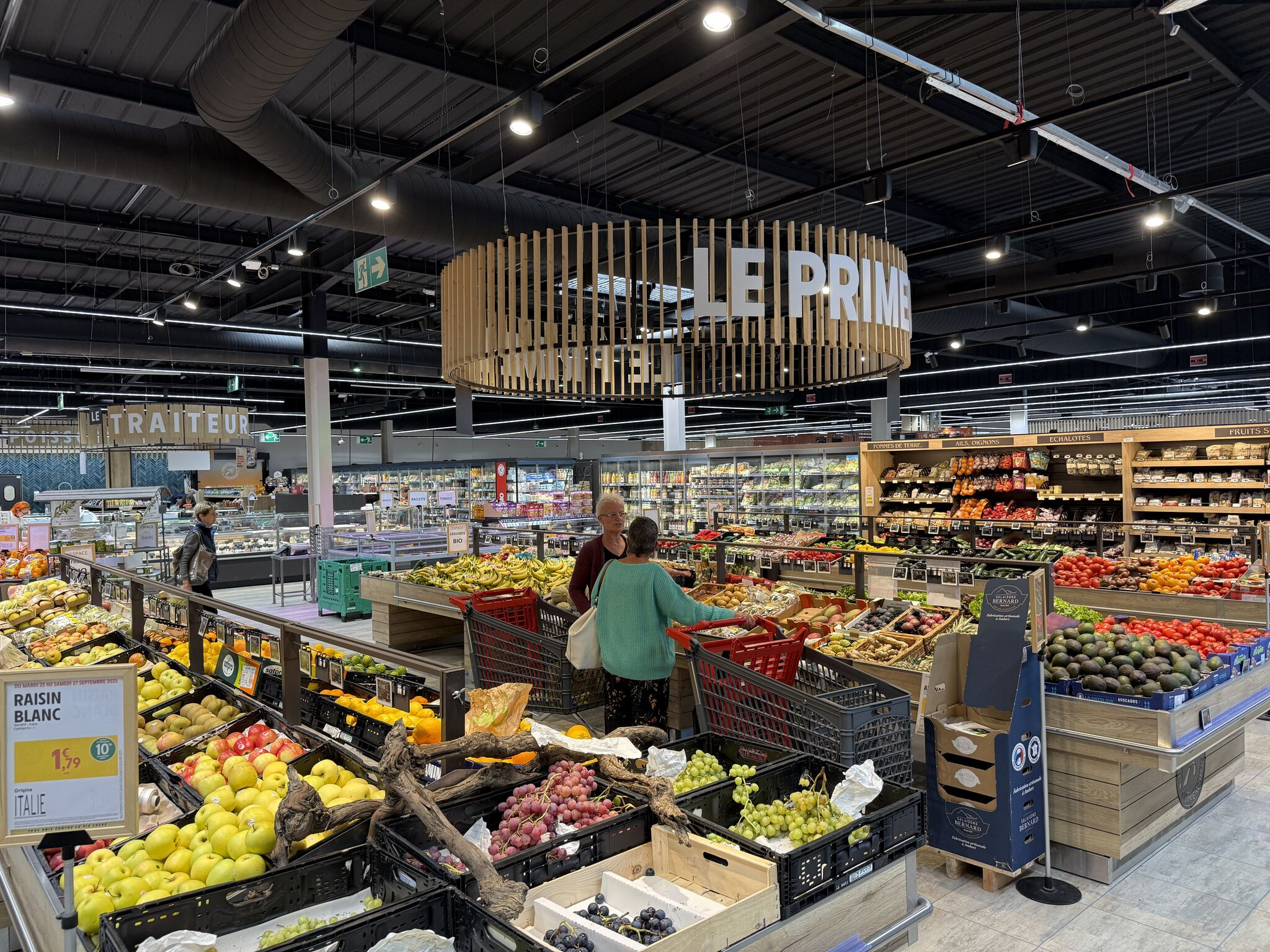

France
Application: Fruit storage
Cooling capacity: 1000 kW
Installed unit: 3 x R290 Air cooled chillers
with inverter screw compressors remote monitored
3 x RAH MC U VS Kp
Sweeden
Application: Food storage
Cooling capacity: 1,5 MW
Installed unit: 4 Air cooled chiller with inverter screw compressors
(double temperature -3°C and -8°C)
4 x RAH MC U VS Kp
