Nominal cooling capacity from 50 kW to 400 kW in Medium Temperature
Nominal cooling capacity from 4 kW to 200 kW in Low Temperature

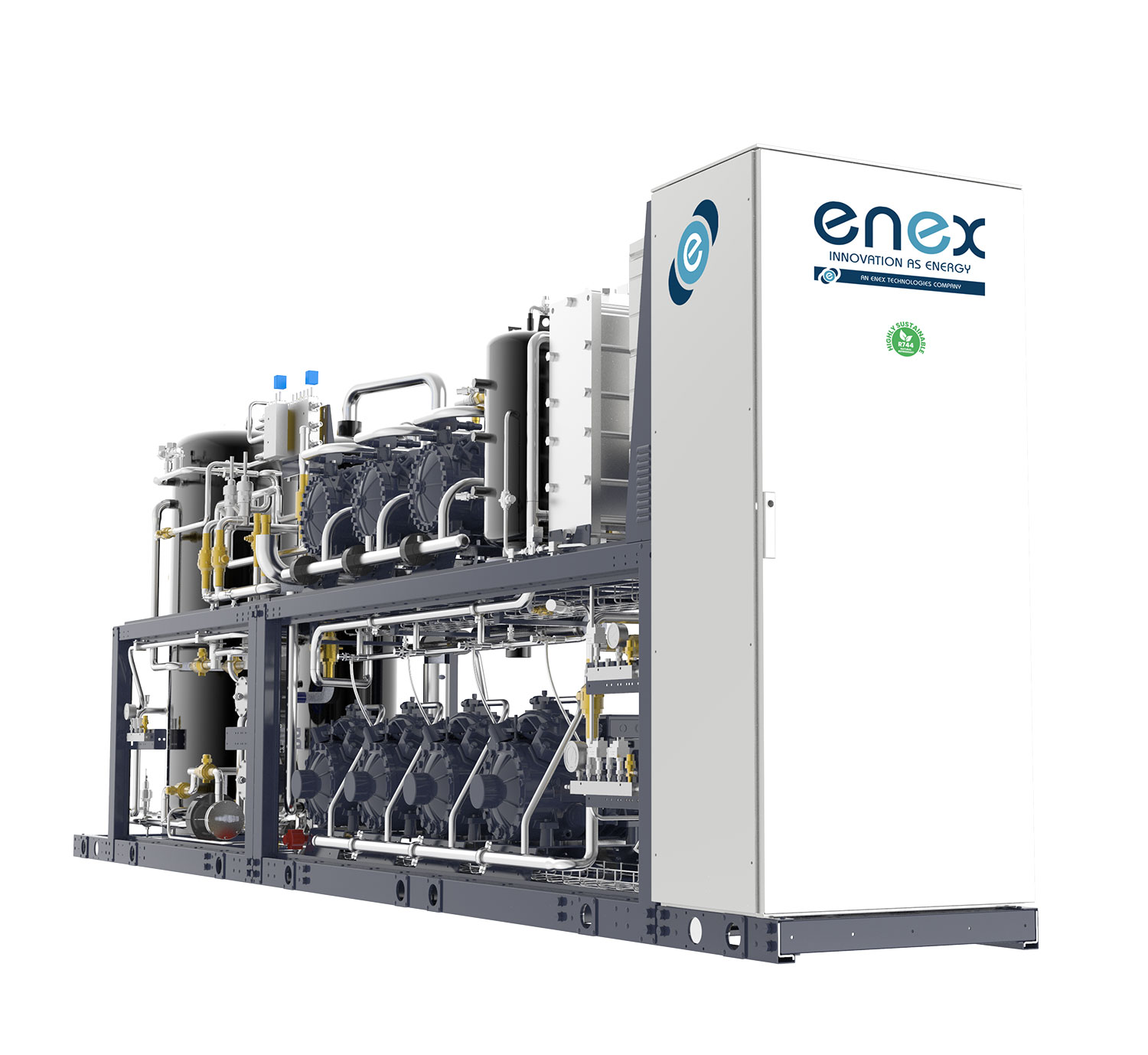

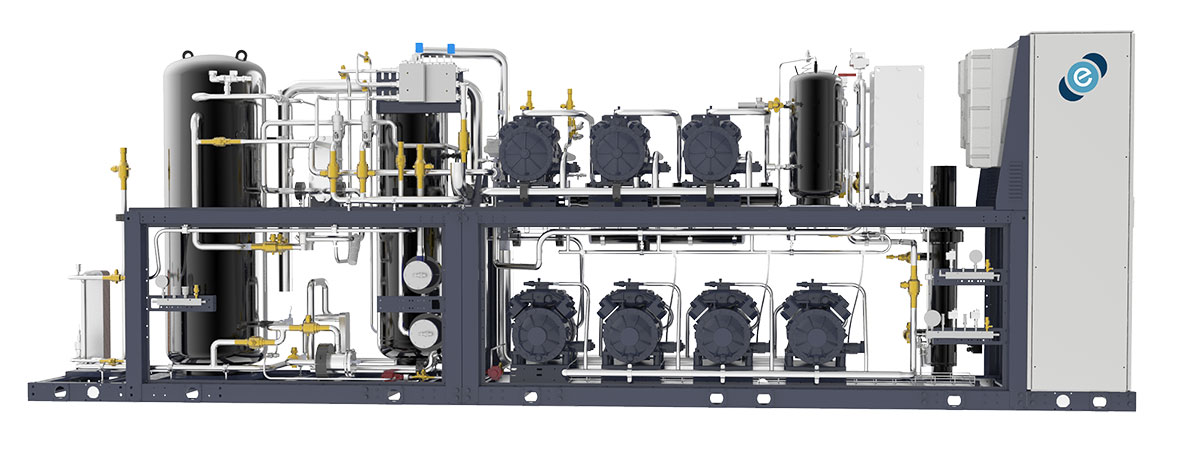

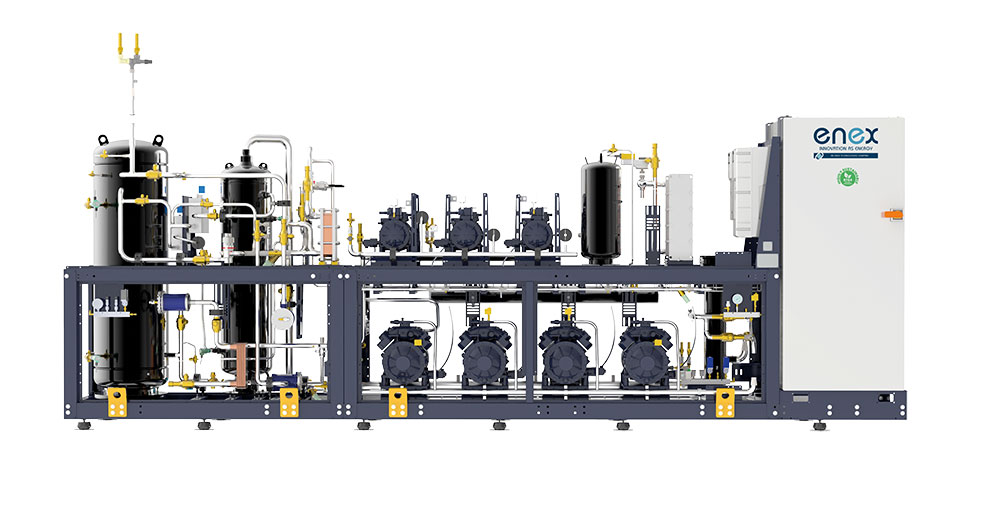

The SENNA Xtra Smart refrigeration booster offers excellent value-for-money in medium and large format retail stores, while retaining the well-known Enex quality and reliability, using highly sustainable R744 refrigerant. Thanks to its narrow width (850mm up to 200kW), it is ideal in retrofit applications. With up to 6 medium temperature and 5 low temperature compressors, the unit can be configured with several efficiency enhancing solutions, such as parallel compression, liquid and vapor ejectors and permanent magnet compressors. Suitable for indoor or outdoor installation with optional cladding, it can be also delivered as a plug & play monoblock unit, mounted on a skid with an integral gas cooler and complete with refrigerant piping and electrical connections.
FEATURES
Robustness
Strong sheetmetal frame
Compactness
850 mm width (up to 200 kW)
2000 mm height (without cladding)
High reliability
Two decades of experience
Double electronic valves
Emergency cooling unit
Internal LT suction/liquid and Flash/gas cooler outlet HX
All cold vessels insulated with 3-layer protection
Industrial type pipe clamps
PAG oil for longer compressor life
3 level sensors in suction accumulator with liquid ejector
Higher service pressure options: 60 bar LT compressors, 80 bar liquid receiver, 130 bar HP
Efficiency
Parallel compressors, liquid and vapor ejectors, LSPM compressors
Flexibility
Dorin or Bitzer, up to 2 heat recovery HX

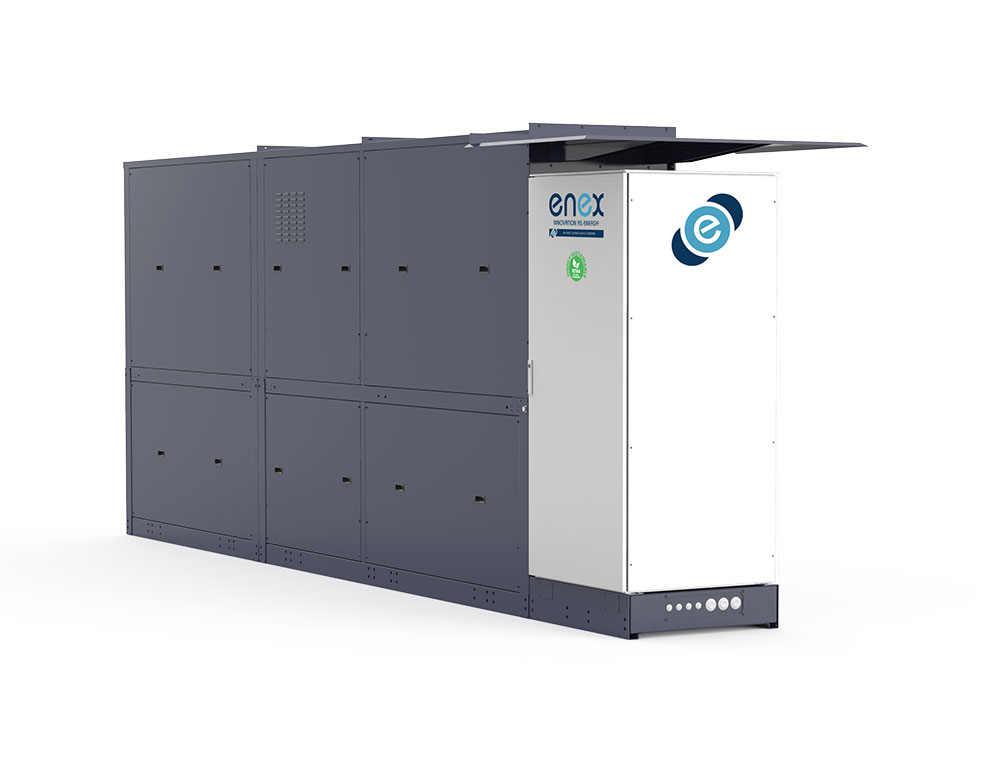

Cladding for outdoor installation and noise reduction
Wide range of configurations and options
Ease of installation

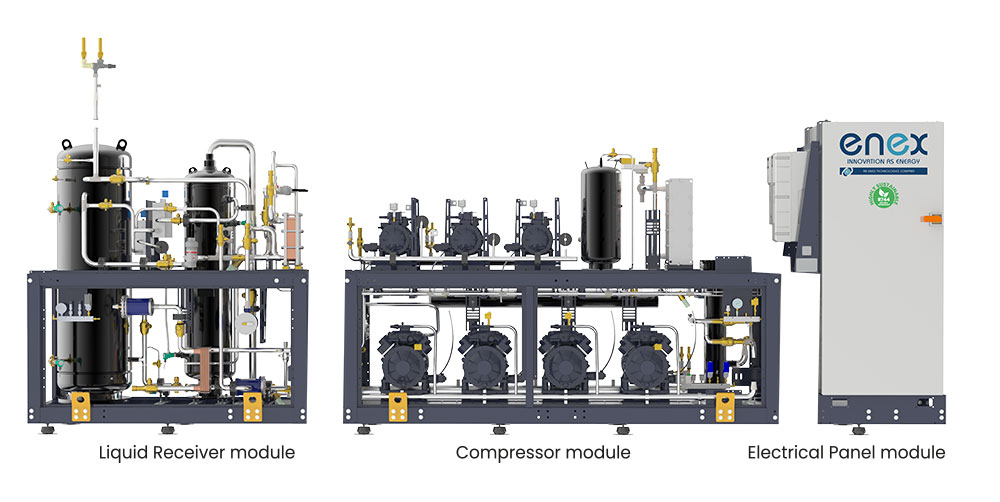

K65 connections, unit in 3 pieces on request
Ease of service
Full accessibility, shut-off valves and bypass on main components
Generously sized oil separator with replaceable cartridge
Min and max optical liquid level sensors on receiver with isolating valve
